Item No.: 80L/50H
China honeycomb Dessciant Wheel Rotor 3 in 1 Dehumidifier Dryer supplier for plastic industry injection dew point -45C
Email: 13590932590@vip.126.com
Description of the China honeycomb dehumidifier,
The honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics. A honeycomb-rotor is used in this series to offer effective drying. We offer two types of honeycomb rotors:H4 and H5 models that, under ideal conditions, can supply dehumidified dry air with a dew-point down to -40 and -50, respectively.The TD-H series offers accurate P.I.D temperature control as optional features. This series comprises 14 models of honeycomb dehumidifiers, the largest of which can provide dry air up to a volume of 4000m3/hr.
The 2 in 1 Honeycomb dehumidifier dew point normal -40 degree centigrade. as dessciant rotor buy from sweden.
Features of the China honeycomb dehumidifier,
The honeycomb dehumidifiers use P.I.D temperature control system, has regenerating temperature settings and real temperature display function.
Equips with dehumidifying heater and temperature control gauge as options to dry and dehumidify the raw material.
The dehumidifying system features two condensers to ensure a low return air temperature and low dew-point,
Main power switch with mechanical chain lock function.

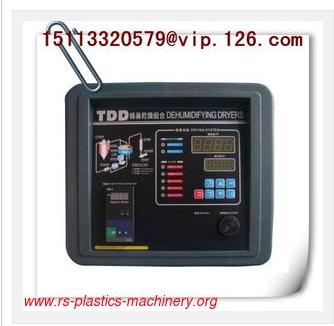

Touch screen ;
3 in 1 Honeycomb dehumidifier dryer specification ;
| Model | 40L/30H | 80L/50H | 120L/80H | 160L/120H | 230L/150H |
| Drying system | | | | | |
| process heater power(KW) | 3 | 3.9 | 6 | 6 | 7.2 |
| process Blower power(KW) | 0.25 | 0.4 | 0.75 | 0.75 | 1.5 |
| Drying hopper capacity(L) | 40 | 80 | 120 | 120 | 230 |
| Dehumidifying system | | | | | |
| Regen heater power(KW) | 3 | 3 | 3.5 | 3.5 | 4 |
| Regen Blower power(KW) | 0.25 | 0.25 | 0.25 | 0.25 | 0.4 |
| Dry Air capacity (M3/hr) | 30 | 50 | 80 | 120 | 150 |
| conveying system | | | | | |
| conveying Blower power(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 |
| Dia.of conveying hose (inch) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Vacuum/sensor hopper receiver(L) | 3 | 6 | 6 | 6 | 12 |
| Dimension | | | | | |
| H (mm) | 1670 | 1670 | 1670 | 1860 | 1860 |
| W (mm) | 1040 | 1040 | 1040 | 1190 | 1190 |
| D (mm) | 875 | 875 | 875 | 1000 | 1000 |
| weight(kg) | 200 | 300 | 320 | 505 | 540 |
| Model | 40L/30H | 80L/50H | 120L/80H | 160L/120H | 230L/150H |
| Drying system | | | | | |
| process heater power(KW) | 3 | 3.9 | 6 | 6 | 7.2 |
| process Blower power(KW) | 0.25 | 0.4 | 0.75 | 0.75 | 1.5 |
| Drying hopper capacity(L) | 40 | 80 | 120 | 120 | 230 |
| Dehumidifying system | | | | | |
| Regen heater power(KW) | 3 | 3 | 3.5 | 3.5 | 4 |
| Regen Blower power(KW) | 0.25 | 0.25 | 0.25 | 0.25 | 0.4 |
| Dry Air capacity (M3/hr) | 30 | 50 | 80 | 120 | 150 |
| conveying system | | | | | |
| conveying Blower power(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 |
| Dia.of conveying hose (inch) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Vacuum/sensor hopper receiver(L) | 3 | 6 | 6 | 6 | 12 |
| Dimension | | | | | |
| H (mm) | 1670 | 1670 | 1670 | 1860 | 1860 |
| W (mm) | 1040 | 1040 | 1040 | 1190 | 1190 |
| D (mm) | 875 | 875 | 875 | 1000 | 1000 |
| weight(kg) | 200 | 300 | 320 | 505 | 540 |
Dehumidifier dryer working principle ;
Machine installation instruction ;
Machine color--- blue or white, or others as customer request;
Machine brand--- factory brand, OEM brand or no brand;
We do OEM!
We do B2B, B2C!
We do Paypal, West Union, T/T and L/C!
contact info ;
WhatsApp: 0086 13590932590
|
|
China honeycomb Dessciant Wheel Rotor 3 in 1 Dehumidifier Dryer supplier for plastic industry injection dew point -45C Images
|
